Web View Index Data List

For example, this example changes the default GetView method for better performance.

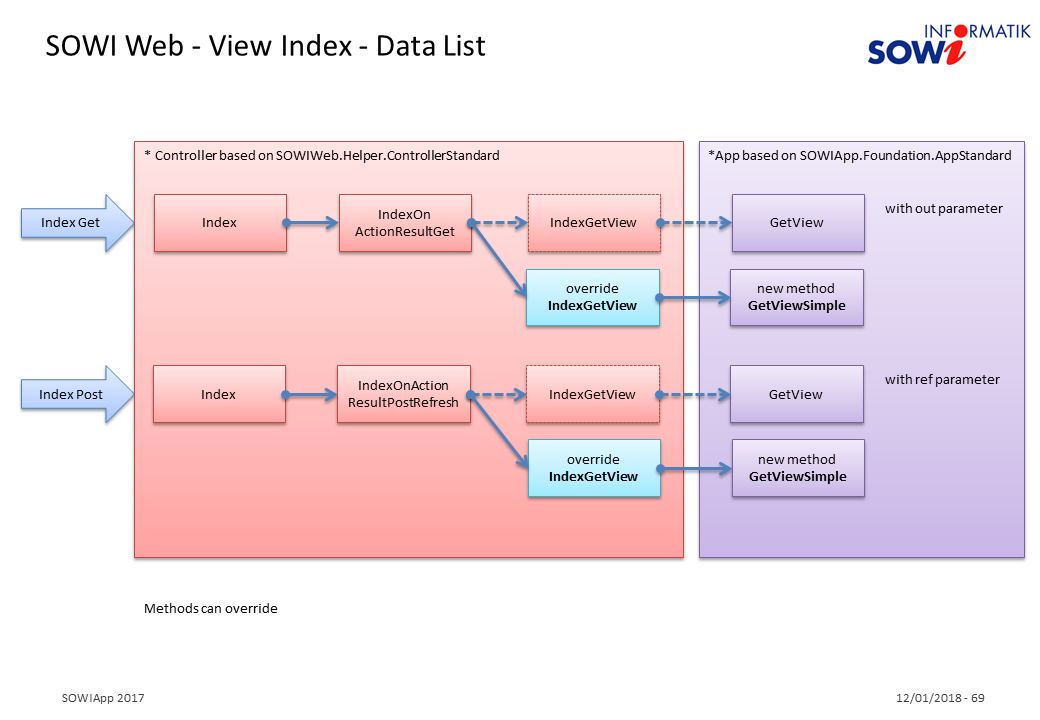

SOWIWeb View Index Data List

Web controller based on SOWI Web Helper Standard Controller

  1. Override the method IndexGetView with out parameter

    C#
    /// <summary>
    /// Overrides the base SOWIWeb.Helper.ControllerStandard method IndexGetView with out parameter.
    /// Tihs method calls the method GetViewSimple from App
    /// </summary>
    /// <param name="pViewConfig">List setting</param>
    /// <param name="pViewName">View name e.g. Index</param>
    /// <param name="pDictionaryUI">UI dictionary</param>
    /// <returns>A simple data list</returns>
    /// <seealso cref="SOWIWeb.Helper.ControllerStandard{DataItemClass}.IndexGetView(out ListViewConfig, string, Dictionary{string, string})"/>
    public override List<object> IndexGetView(out ListViewConfig pViewConfig, string pViewName, Dictionary<string, string> pDictionaryUI = null)
    {
        return this.AppMuster.GetViewSimple(out pViewConfig, pViewName, pDictionaryUI);
    }
  2. Override the method IndexGetView with ref parameter

    C#
    /// <summary>
    /// Overrides the base SOWIWeb.Helper.ControllerStandard method IndexGetView with ref parameter.
    /// This method calls the method GetViewSimple from App.
    /// </summary>
    /// <param name="pViewConfig">List setting</param>
    /// <param name="pDictionaryUI">UI dictionary</param>
    /// <returns>A simple data list</returns>
    /// <seealso cref="SOWIWeb.Helper.ControllerStandard{DataItemClass}.IndexGetView(ref ListViewConfig, Dictionary{string, string})"/>
    public override List<object> IndexGetView(ref ListViewConfig pViewConfig, Dictionary<string, string> pDictionaryUI = null)
    {
        return this.AppMuster.GetViewSimple(ref pViewConfig, pDictionaryUI);
    }

App logic based on SOWI App Foundation App Standard

  1. Create method GetViewSimple with out parameter

    C#
    /// <summary>
    /// Data list configured by List View Config
    /// </summary>
    /// <param name="pViewConfig">Return the ViewConfig object</param>
    /// <param name="pViewName">View name for list view setting e.g. Index</param>
    /// <param name="pDictionaryUI">UI dictionary. If object equal null then use internal DictionaryUI object</param>
    /// <returns>A list of data item objects</returns>
    /// <remarks>
    /// This method calls method GetViewSimple with ref parameter.
    /// See this for more information.
    /// </remarks>
    public List<object> GetViewSimple(out SOWIData.Management.ListViewConfig pViewConfig, string pViewName, Dictionary<string, string> pDictionaryUI = null)
    {
        try
        {
            if (pDictionaryUI == null)
            {
                pDictionaryUI = this.DictionaryUI;
            }
            pViewConfig = SOWIApp.Management.ListViewConfig.GetByConfig(this.AppName, this.UserName, pViewName);
            return this.GetViewSimple(ref pViewConfig, pDictionaryUI);
        }
        catch (Exception ex)
        {
            SIC.Protocol.Write(ref ex);
            throw;
        }
    }
  2. Create method GetViewSimple with ref parameter

    This method works with direct SQL statements and a SQL view for a better performance.

    C#
    /// <summary>
    /// Gives a data list by list view config setting.
    /// </summary>
    /// <remarks>
    /// Requirement: SQL view called View_Ticket
    /// </remarks>
    /// <param name="pViewConfig">Setting for data list. This parameter is by reference (C# with ref prefix)</param>
    /// <param name="pDictionaryUI">Dictionary for UI translation. If null then the internal DictionaryUI is used</param>
    /// <returns>List of data records</returns>
    /// <seealso cref="SOWIData.Management.ListViewConfig"/>
    /// <seealso cref="SOWIApp.Foundation.AppStandard{DataItemClass}.GetView(ref SOWIData.Management.ListViewConfig, Dictionary{string, string})"/>
    public List<object> GetViewSimple(ref SOWIData.Management.ListViewConfig pViewConfig, Dictionary<string, string> pDictionaryUI = null)
    {
        try
        {
            #region --- declaration SQL variable ---
            string lSQL;
            string lSQLSelect = @"SELECT * FROM [View_Ticket] ";
            string lSQLWhere = "";
            string lSQLOrderBy = "";
            #endregion

            #region --- puts DictionaryUI object ---
            if (pDictionaryUI == null)
            {
                pDictionaryUI = this.DictionaryUI;
            }
            if (pViewConfig == null)
            {
                throw new Exception(SIC.Messages.DataNotFound.ToString());
            }
            #endregion

            #region --- search field exist? ---
            if (pViewConfig.SearchField == null)
            {
                pViewConfig.SearchField = "";
            }
            #endregion

            #region --- set SearchValues ---
            pViewConfig.SearchValues = new List<string>();
            string lSearchField = pViewConfig.SearchField;
            if (lSearchField != "")
            {
                try
                {
                    lSQL = "SELECT [" + lSearchField + "] " +
                           "FROM [View_Ticket] " +
                           "WHERE [ClientID] = " + this.ClientID + " AND [StatusText] <> 'Delete' AND [" + lSearchField + "] IS NOT NULL " +
                           "GROUP BY [" + lSearchField + "]";
                    pViewConfig.SearchValues = this.DB.Database.SqlQuery<string>(lSQL).ToList();

                    //var lSearchValues = this.DB.Database.SqlQuery<object>(lSQL).ToList();
                    //foreach (var item in lSearchValues)
                    //{
                    //    pViewConfig.SearchValues.Add(item.ToString());
                    //}
                }
                catch (Exception ex)
                {
                    // BUG: exception message: Die angegebene Umwandlung aus einem materialisierten 'System.DateTime'-Typ in den 'System.String'-Typ ist ungültig. [12.01.2018]

                    pViewConfig.SearchValues.Add("");
                    pViewConfig.SearchValues.Add("Daten können nicht gelesen werden!");
                    pViewConfig.SearchValues.Add("Exception: " + ex.Message.ToString());
                }
            }
            #endregion

            #region --- sort field and direction exist? ---
            if (pViewConfig.SortField == null)
            {
                pViewConfig.SortField = this.SortFieldStandard;
                pViewConfig.SortDirection = this.SortDirectionStandard;
            }
            #endregion

            #region --- puts sort SQL statement ---
            lSQLOrderBy = "ORDER BY [" + pViewConfig.SortField + "] ";
            if (pViewConfig.SortDirection == SortDirections.descending)
            {
                lSQLOrderBy += "DESC ";
            }
            #endregion

            #region --- search and sort field list exist? ---
            if (pViewConfig.Fields == null)
            {
                var lFields = DataGridView;
                lFields = (from p in lFields
                           where p.InFieldList == true
                           select p).ToList();
                lFields.Insert(0, new SOWIData.Management.DataGrid());
                if (pDictionaryUI != null)
                {
                    SOWIApp.Management.DataGrid.Translate(ref lFields, pDictionaryUI);
                }
                else
                {
                    foreach (var item in lFields)
                    {
                        if (item.ColumnLabel.Length == 0)
                        {
                            item.ColumnLabel = item.DataFieldName;
                        }
                    }
                }
                pViewConfig.Fields = lFields; ;
            }
            #endregion

            #region --- puts search filter SQL statement ---

            //* analyse customer filter *
            string lValue = (string.IsNullOrEmpty(pViewConfig.SearchValue) ? "" : pViewConfig.SearchValue);
            if (lValue == "")
            {
                lValue = (string.IsNullOrEmpty(pViewConfig.SearchValue2) ? "" : pViewConfig.SearchValue2);
                if (lValue != "")
                {   // ** Check exists Value in Search Values **
                    var lFind = pViewConfig.SearchValues.Find(p => p == lValue);
                    if (lFind == null)
                    {
                        lValue = "";
                        pViewConfig.SearchValue2 = "";
                    }
                    else
                    {
                        lValue = pViewConfig.SearchValue2;
                    }
                }
            }
            else
            {
                pViewConfig.SearchValue2 = "";
            }

            //* puts default filter *
            lSQLWhere = @"WHERE [ClientID] = " + this.ClientID.ToString() + " " +
                          @"AND [StatusText] <> 'Delete' ";

            //* puts custom filter *
            if (lValue.Length > 0)
            {
                lSQLWhere += @" AND ";
                switch (pViewConfig.SearchOperator)
                {
                    case Operators.Equal:
                        lSQLWhere += @"[" + pViewConfig.SearchField.ToString() + @"] = '" + lValue.ToString() + @"' ";
                        break;
                    case Operators.LessThan:
                        lSQLWhere += @"[" + pViewConfig.SearchField.ToString() + @"] < " + lValue.ToString() + @" ";
                        break;
                    case Operators.LessThanOrEqual:
                        lSQLWhere += @"[" + pViewConfig.SearchField.ToString() + @"] <= " + lValue.ToString() + @" ";
                        break;
                    case Operators.GreaterThan:
                        lSQLWhere += @"[" + pViewConfig.SearchField.ToString() + @"] > " + lValue.ToString() + @" ";
                        break;
                    case Operators.GreaterThanOrEqual:
                        lSQLWhere += @"[" + pViewConfig.SearchField.ToString() + @"] >= " + lValue.ToString() + @" ";
                        break;
                    case Operators.Contains:        //* example: WHERE [Name] LIKE '%Beamer%' *
                        lSQLWhere += @"[" + pViewConfig.SearchField.ToString() + @"] LIKE '%" + lValue.ToString() + @"%' ";
                        break;
                    case Operators.Flag:
                        break;
                    default:
                        break;
                }
            }
            #endregion

            #region --- puts data rows active, archived or all ---
            switch (pViewConfig.Record)
            {
                case Records.All:
                    break;
                case Records.Active:
                    lSQLWhere += " AND [Archive] = 0 ";
                    break;
                case Records.Archived:
                    lSQLWhere += " AND [Archive] = 1 ";
                    break;
                default:
                    break;
            }
            #endregion

            #region --- paging ---

            //* count of rows *
            lSQL = @"SELECT COUNT([ID]) FROM [View_Ticket] ";
            lSQL += lSQLWhere;   //* example: WHERE [ClientID] = 4 AND [StatusText] <> 'Delete' *
            var lCount = this.DB.Database.SqlQuery<int>(lSQL).First();

            pViewConfig.RecordCount = lCount;
            pViewConfig.PageCount = pViewConfig.RecordCount / pViewConfig.PageSize;
            int lRecordCountByPage = pViewConfig.PageSize * pViewConfig.PageCount;
            if (lRecordCountByPage < pViewConfig.RecordCount)
            {
                pViewConfig.PageCount += 1;
            }
            if (pViewConfig.CurrentPageIndex > pViewConfig.PageCount - 1)        // CurrentPageIndex null based
            {
                pViewConfig.CurrentPageIndex = pViewConfig.PageCount - 1;
            }
            #endregion

            #region --- set data list ---
            lSQL = lSQLSelect;   //* SELECT * FROM View_Ticket *
            lSQL += lSQLWhere;   //* example: WHERE [ClientID] = 4 AND [StatusText] <> 'Delete' *
            lSQL += lSQLOrderBy; //* example: ORDER BY [Name] *

            //* paging *
            #region --- test example ---
            //lSQL += @"OFFSET 0 ROWS " +
            //        @"FETCH NEXT 20 ROWS ONLY";
            #endregion

            int lOffset = (pViewConfig.CurrentPageIndex * pViewConfig.PageSize);
            if (lOffset >= 0)
            {
                lSQL += @"OFFSET " + lOffset + " ROWS " +
                        @"FETCH NEXT " + pViewConfig.PageSize + " ROWS ONLY";
            }
            List<ProTicData.Models.Ticket> lQuery = this.DB.Database.SqlQuery<ProTicData.Models.Ticket>(lSQL).ToList();
            #endregion

            #region --- saves ListViewConfig object ---
            SOWIApp.Management.ListViewConfig.SetListViewConfig(pViewConfig);
            #endregion

            return (lQuery as IEnumerable<object>).Cast<object>().ToList();

        }
        catch (Exception ex)
        {
            SIC.Protocol.Write(ref ex);
            throw;
        }
    }
