Web Controller Modify

This example modifies the SOWI Web Administrator standard User controller

This topic contains the following sections:

Requisition

Change the Data Item Toolbar. Adds a toolbar button called "Ticket Option" into toolbar data item list

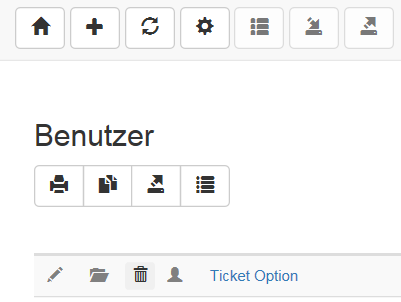

Screen Web Controller Modify Toolbar Item
Requirement
Web Controller

Modifies the toolbar item into user controller view Index

  1. Create a new class in folder Controllers

    Tip: using the project item template SOWIClass

  2. Inheritance the user web controller from SOWI Web Administrator

    See also: SOWIWeb.Administrator.ControllersUserController

    C#
    Copy
    public class TicketUserController : SOWIWeb.Administrator.Controllers.UserController
{
    // ...
}

  3. Write a constructor method without parameter and initialize the base class (SOWIWeb.Administrator.Controllers.UserController)

    Tip: using the code snippet SOWI Class Constructor (shortcut scsClassConstr) and append code for initialize the base class

    C#
    Copy
    /// <summary>
/// Initializes a new instance of the TicketUserController class.
///    Constructor without parameter
/// </summary>
public TicketUserController() : base() { }

  4. Override the method IndexGetToolbarItem and write code for adds a button in the toolbar

    See also: UserControllerIndexGetToolbarItem and SOWIWeb.HelperToolbarButton

    C#
    Copy
    /// <summary>
/// Adds a toolbar button for Ticket options
/// </summary>
/// <returns>Toolbar list for Index view</returns>
/// <seealso cref="SOWIWeb.Helper.ToolbarButton"/>
/// <seealso cref="SOWIWeb.Administrator.Controllers.UserController.IndexGetToolbarItem"/>
protected override List<ToolbarButton> IndexGetToolbarItem()
{
    List<ToolbarButton> lToolbarItem = base.IndexGetToolbarItem();
    lToolbarItem.Add(new SOWIWeb.Helper.ToolbarButton(SOWIWeb.Helper.ButtonType.Action,
                                                      pMVCController: "TicketUserOption",
                                                      pMVCAction: "IndexByUser",
                                                      pLabel: "Ticket Option"));
    return lToolbarItem;
}

Complete code example

C#
Copy
 1using System.Collections.Generic;
 2using SOWIWeb.Helper;
 3
 4namespace SOWIWeb.ProTic.Controllers
 5{
 6    /// <summary>
 7    /// Ticket user web controller based on SOWI Web Administrator User Controller
 8    /// </summary>
 9    /// <seealso cref="SOWIWeb.Administrator.Controllers.UserController"/>
10    public class TicketUserController : SOWIWeb.Administrator.Controllers.UserController
11    {
12        /// <summary>
13        /// Initializes a new instance of the TicketUserController class.
14        ///    Constructor without parameter
15        /// </summary>
16        public TicketUserController() : base() { }
17
18        /// <summary>
19        /// Adds a toolbar button for Ticket options
20        /// </summary>
21        /// <returns>Toolbar list for Index view</returns>
22        /// <seealso cref="SOWIWeb.Helper.ToolbarButton"/>
23        /// <seealso cref="SOWIWeb.Administrator.Controllers.UserController.IndexGetToolbarItem"/>
24        protected override List<ToolbarButton> IndexGetToolbarItem()
25        {
26            List<ToolbarButton> lToolbarItem = base.IndexGetToolbarItem();
27            lToolbarItem.Add(new SOWIWeb.Helper.ToolbarButton(SOWIWeb.Helper.ButtonType.Action,
28                                                              pMVCController: "TicketUserOption",
29                                                              pMVCAction: "IndexByUser",
30                                                              pLabel: "Ticket Option"));
31            return lToolbarItem;
32        }
33    }
34}
Web Routing

Modify web routing

  1. Go to source code file Global.asax.cs

  2. Add into method Application_Start the map routes

    Note: the order of map route is important

    See also: SOWIWeb.Foundation.AppRouteConfig and RegisterRoutes

    C#
    Copy
    //* route redirection User/Index to TicketUser/Index *
RouteTable.Routes.MapRoute(
            name: "UserIndex",
            url: "User/Index/{id}/{parameter}",
            defaults: new { controller = "TicketUser", action = "Index", id = "", parameter = "" });

//* route redirection TicketUser/Details to User/Details *
RouteTable.Routes.MapRoute(
            name: "UserDetails",
            url: "TicketUser/Details/{id}/{parameter}",
            defaults: new { controller = "User", action = "Details", id = "", parameter = "" });

//* standard routes *
SOWIWeb.Foundation.App.RouteConfig.RegisterRoutes(RouteTable.Routes);

Complete code example

C#
Copy
 1/// <summary>
 2/// SOWI Web application start event.
 3/// Sets global routes and redirection of TicketUser.
 4/// </summary>
 5/// <seealso cref="SOWIWeb.Foundation.App.RouteConfig"/>
 6/// <seealso cref="SOWIWeb.Foundation.App.RouteConfig.RegisterRoutes(RouteCollection, string, string, string, string)"/>
 7protected void Application_Start()
 8{
 9    //* note: order of map route is important *
10
11    //* route redirection User/Index to TicketUser/Index *
12    RouteTable.Routes.MapRoute(
13                name: "UserIndex",
14                url: "User/Index/{id}/{parameter}",
15                defaults: new { controller = "TicketUser", action = "Index", id = "", parameter = "" });
16
17    //* route redirection TicketUser/Details to User/Details *
18    RouteTable.Routes.MapRoute(
19                name: "UserDetails",
20                url: "TicketUser/Details/{id}/{parameter}",
21                defaults: new { controller = "User", action = "Details", id = "", parameter = "" });
22
23    //* standard routes *
24    SOWIWeb.Foundation.App.RouteConfig.RegisterRoutes(RouteTable.Routes);
25
26    // ...
27
28}
