Test Unit Programming

The following topics descriptive the code pattern of test unit and test case with Microsoft.VisualStudio.QualityTools.UnitTestFramework and SIC.Test.Helper.

Testing concept go to here (e.g. structure, name syntax)

Uses assembly SIC.Test.Helper for programming test units.

This topic contains the following sections:

Test Project
Test Unit
SIC Test Helper Overview
Session Setting
Test Case
Initialize events
Clean up events
Troubleshooting
See Also

Test Project

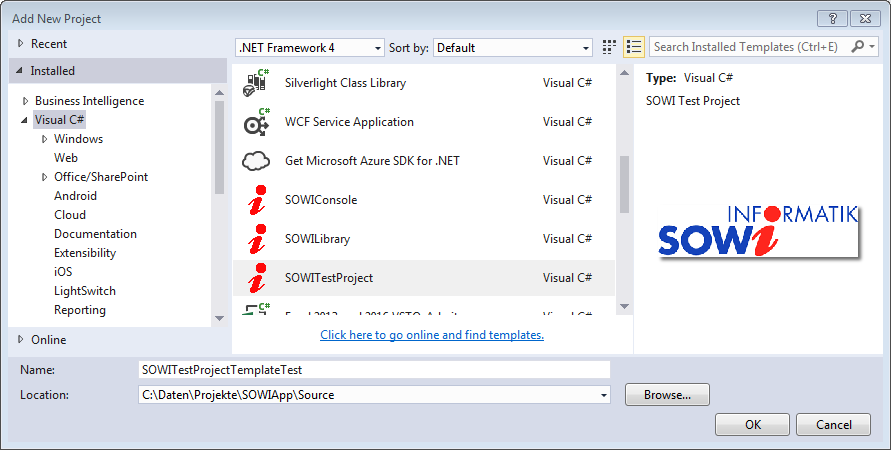

A test project can creates by project template

This it's base for adding any test units.

Test project create base folder structure and puts references.

An example of test project into solution explorer window

Test Unit

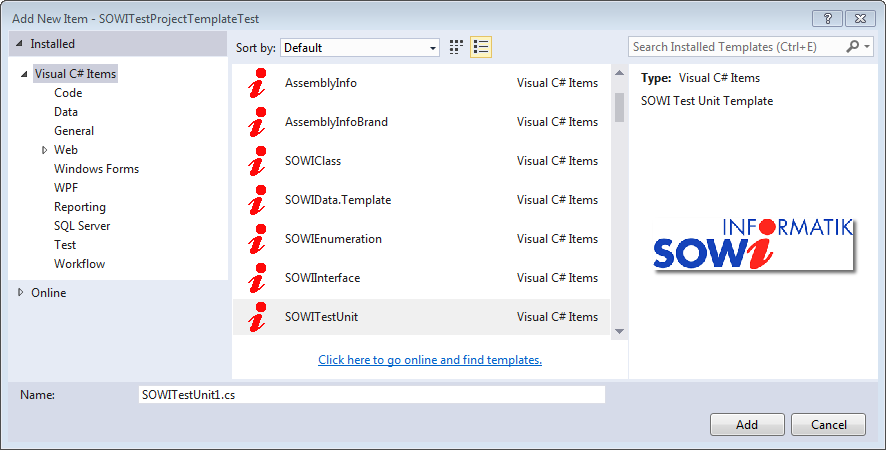

A Test Unit can creates by project item template

An example of test unit

Copy

using Microsoft.VisualStudio.TestTools.UnitTesting;

namespace SIC.Test.Helper.Test
{
    // UNDONE: next step: edit comment and rename file/class name (syntax: ProjectNameTestClassName)
    /// <summary>
    /// Test unit for
    /// </summary>
    /// <remarks>
    /// Requirement: none<para />
    /// External Data: none<para />
    /// Details about base test unit see <see cref="SIC.Test.Helper.TestUnit"/>
    /// </remarks>
    /// <seealso cref="SIC.Test.Helper"/>
    /// <seealso cref="SIC.Test.Helper.TestUnit"/>
    /// <seealso cref="SIC.Test.Helper.Directory"/>
    /// <seealso cref="SIC.Test.Helper.Print"/>
    /// <seealso cref="SIC.Test.Helper.Log"/>
    /// <seealso cref="SIC.Test.Helper.Session"/>
    [TestClass()]
    public class SOWITestUnit1 : SIC.Test.Helper.TestUnit
    {
        #region --- test initialize ---

        /// <summary>
        /// Test directories setting
        /// </summary>
        protected override void OnDirectorySetting()
        {
            // TOSET: Test Environment (directories)
            this.DirectorySetting(
                    pDataRedirecting: @"C:\Work\Data\",
                    pDataRedirect: false,                   //* regular to project directory + Data *
                    pResultRedirecting: @"C:\Work\",        //* if empty then to project directory + Result *
                    pResultRedirect: false);
        }

        /// <summary>
        /// Test session setting
        /// Note: object Directory and Log is available.
        /// </summary>
        protected override void OnSessionSetting()
        {
            // UNDONE: next step: Needed? Yes, implement logic. No, delete this task.
            base.OnSessionSetting();
        }

        /// <summary>
        /// Test initialize for test environment settings.
        /// Note: object Directory and Log is available.
        /// </summary>
        protected override void OnTestInitialize()
        {
            // UNDONE: next step: Needed? Yes, implement logic. No, delete this task.
            base.OnTestInitialize();
        }

        #endregion

        #region --- test clean up ---

        /// <summary>
        /// Test clean up
        /// </summary>
        protected override void OnTestCleanup()
        {
            // UNDONE: next step: Needed? Yes, implement logic. No, delete this task.
            base.OnTestCleanup();
        }

        #endregion

        #region --- test object ---

        #endregion

        #region --- test case ---

        // UNDONE: next step: implement test cases (code snippet scsTestCase)

        #endregion

    }

}

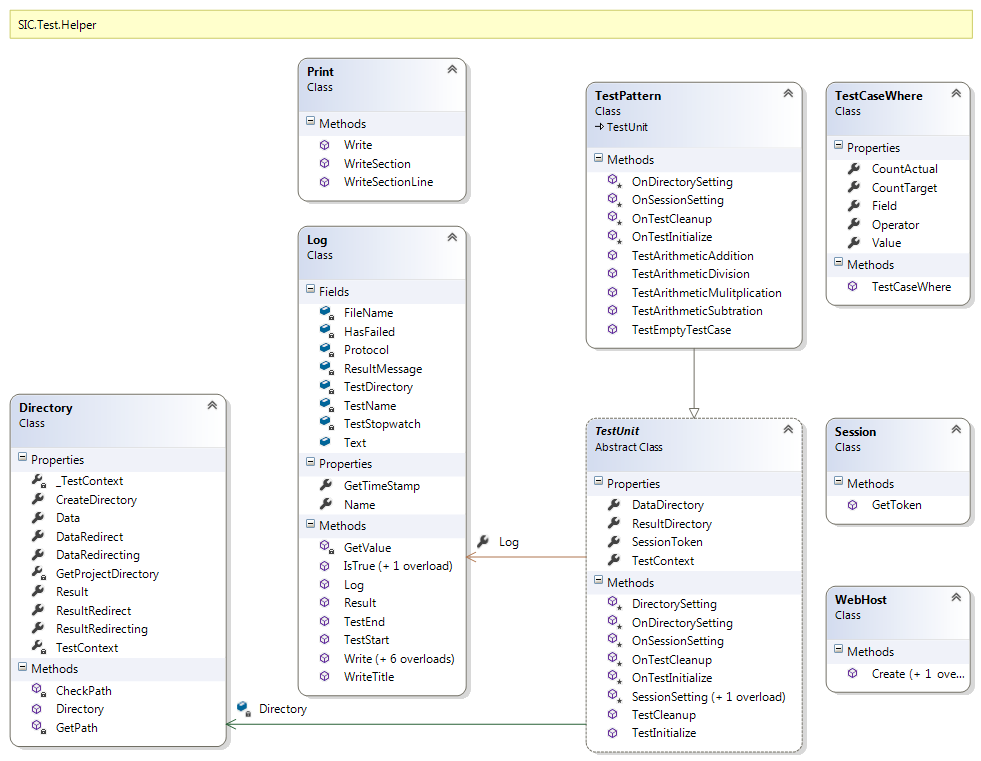

SIC Test Helper Overview

For more information see (sorted A-Z)

Session Setting

Session Token

Session token will uses for SOWI Management handling with a SOWI Config file (.sconfig). Uses for Win application or for App modules. Usage for Web application see WebHost.

This example puts a test unit session token

Copy

/// <summary>
/// Test session setting
/// Note: object Directory and Log is available.
/// </summary>
protected override void OnSessionSetting()
{
    // TOSET: login for session
    this.SessionSetting("UserName", "Password");

    //base.OnSessionSetting();  //* without session token *
}

When there are several test cases that need a session, it is recommended to store the properties (user name and his password) as project properties. This properties already exist in a SOWI Test Project (Template)

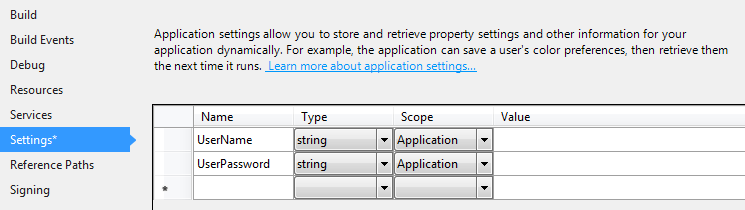

This example puts a test unit session token about project properties TestUnitSessionSetting (assembly by entry attribute, see also SICEntryAssemblyAttribute)

Copy

this.SessionSetting();

The Session Token can be using for test case with the property TestUnitSessionToken

This example create a test object SOWIAppStandard for test case with SOWI Management handling

Copy

lSOWIAppStandard = new SOWIApp.Foundation.Test.TestObject.SOWIAppStandard(this.SessionToken);

Web Host

This example puts a web host HTTP context object.

Call from SIC.Test.Helper.WebHost method Create(String). This create a web host

Copy

/// <summary>
/// Test session setting
/// Note: object Directory and Log is available.
/// </summary>
protected override void OnSessionSetting()
{
    SIC.Test.Helper.WebHost.Create();   //* created a HTTP context object *
    //base.OnSessionSetting();          //* without session token *
}

When useage web application with SOWI Web Standard Controller then to login with SOWI Web Helper Session Login method

Copy

/// <summary>
/// Test session setting
/// Note: object Directory and Log is available.
/// </summary>
protected override void OnSessionSetting()
{
    SIC.Test.Helper.WebHost.Create();   //* created a HTTP context object *
    SOWIWeb.Helper.Session.LogIn(Properties.Settings.Default.UserName, Properties.Settings.Default.UserPassword);


    //base.OnSessionSetting();          //* without session token *
}

Test Case

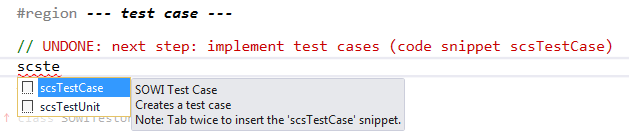

1. Create a test case with code snippet "scsTestCase"

2. The code snippet writes following code

3. Fill input fields

Documentation what tests:
What does this test case tests?
Write text in test case header code comment.
Write a short description.
Important: make link to method what tests because his method comment has a detail description about function.

4. Go to the task tokens UNDONE

Important
Note about test stop watch: does not logs between method TestStart and TestEnd because it distorts the test duration.

Tip
Writes a task token //TOSET for changes values e.g. to 0 for a flawed test result

Tip
Can use \t as a tabulator

Tip
Using code snippets: scsTestCondition writes a test condition at test case. scsTestWrite writes a testing log text

Copy

/// <summary>
/// Test case for ... <br />
/// (ToDo: past method summary what tests)
/// </summary>
/// <remarks>
/// Requirement: none<para />
/// External Data: none
/// </remarks>
/// <seealso cref="reference what does this test case tests?"/>
[TestCategory("Test category not defined")]
[TestMethod]
public void TestProjectClassMethodParameter()
{
    SIC.Test.Helper.Print.WriteSectionLine();   //* section line (only Debug window) *
    this.Log.Write(this.Log.Name);              //* start test log writes to Debug window and to protocol file *

    #region --- Preparation ---
    this.Log.WriteTitle("TEST PREPARATION");

    this.Log.Write("Test variable...");
    // UNDONE: next step: definie test values and the correct result values (example: int lValueA = 10; int lResultCorrect = 3;)
    //---
    // TOSET: test values and correct result values

    //---

    //* protocol test preparation *
    // UNDONE: next step: definie the protocol test preparation (example: this.Log.Write("Value A", lValueA.ToString());)
    this.Log.Write("Test prepared");
    #endregion

    #region --- Execution ---
    this.Log.WriteTitle("TEST EXECUTION");
    // UNDONE: next step: log test case code (example: this.Log.Write("Calculation A / B...");)
    this.Log.TestStart();
    try
    {
        // UNDONE: next step: implement test case code (example: lResult = lValueA / lValueB;)
    }
    catch (Exception ex)
    {
        this.Log.IsTrue(ref ex);
    }
    this.Log.TestEnd();

    //* protocol test execution *
    // UNDONE: next step: definie the protocol test execution (example: this.Log.Write("Result   ", lResult.ToString());)
    this.Log.Write("Test executed");
    #endregion

    #region --- Analysis ---
    this.Log.WriteTitle("TEST ANALYSIS");

    //* conditions *
    // UNDONE: next step: definie the test analysis (example: this.Log.IsTrue((lResultCorrect == lResult), "The result should be " + lResultCorrect.ToString(), "The result is correct");)
    this.Log.IsTrue(false, "No conditions");

    //* write result of conditions *
    this.Log.Result();
    #endregion
}

Test Case Example

Copy

/// <summary>
/// Test case for arithmetic addition
/// </summary>
/// <remarks>
/// Requirement: none<para />
/// External Data: none
/// </remarks>
[TestCategory("SOWI Testing")]
[TestMethod]
public void TestArithmeticAddition()
{

    SIC.Test.Helper.Print.WriteSectionLine();   //* section line (only Debug window) *
    this.Log.Write(this.Log.Name);              //* start test log writes to Debug window and to protocol file *

    #region --- Preparation ---
    this.Log.WriteTitle("TEST PREPARATION");

    this.Log.Write("Test variable...");
    //---
    // TOSET: test values
    int lValueA = 10;

    //* Test with a wrong result. Change value in lValueB to a other number. Comment or uncomment next line. *
    int lValueB = 5;
    //lValueB = 3;

    int lResultCorrect = 15;
    //---
    int lResult = -1;

    //* protocol test preparation *
    this.Log.Write("Value A", lValueA.ToString());
    this.Log.Write("Value B", lValueB.ToString());
    this.Log.Write("Correct result ", lResultCorrect.ToString());
    this.Log.Write("Test prepared");
    #endregion

    #region --- Execution ---
    this.Log.WriteTitle("TEST EXECUTION");
    this.Log.Write("Calculation A + B...");
    this.Log.TestStart();
    try
    {
        lResult = lValueA + lValueB;
    }
    catch (Exception ex)
    {
        this.Log.IsTrue(ref ex);
    }
    this.Log.TestEnd();

    //* protocol test execution *
    this.Log.Write("Result   ", lResult.ToString());
    this.Log.Write("Test executed");
    #endregion

    #region --- Analysis ---
    this.Log.WriteTitle("TEST ANALYSIS");

    //* conditions *
    this.Log.IsTrue((lResultCorrect == lResult),
        "The result should be " + lResultCorrect.ToString(),
        "The result is correct");

    //* write result of conditions *
    this.Log.Result();
    #endregion
}

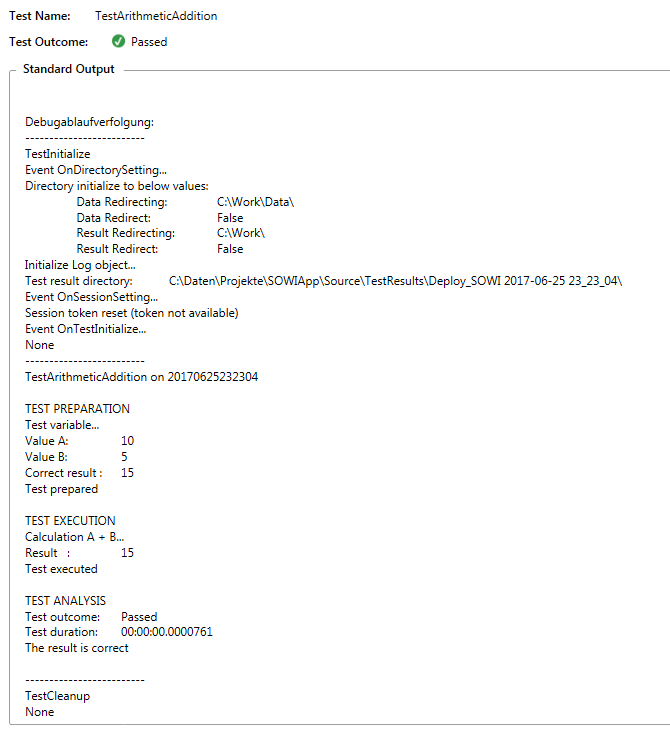

Test case output

Initialize events

Assembly initialize

If it's required then implement this code pattern.

Note: below objects isn't available: TestContext, Directory, Log, Session

Copy

/// <summary>
/// Test assembly initialize
/// </summary>
/// <remarks>Some objects isn't available (Directory, Log, Session)</remarks>
/// <param name="pTestContext">Test context object properties because the class TestContext object isn't available</param>
[AssemblyInitialize()]
public static void AssemblyInitialize(TestContext pTestContext)
{
    SIC.Test.Helper.Print.WriteSection(System.Reflection.MethodBase.GetCurrentMethod().Name.ToString());
}

Class initialize

If it's required then implement this code pattern.

Note: below objects isn't available: Directory, Log, Session

Copy

/// <summary>
/// Test class initialize
/// </summary>
/// <remarks>Some objects isn't available (Directory, Log, Session)</remarks>
/// <param name="pTestContext">Test context object properties because the class TestContext object isn't available</param>
[ClassInitialize()]
public static void ClassInitialize(TestContext pTestContext)
{
    SIC.Test.Helper.Print.WriteSection(System.Reflection.MethodBase.GetCurrentMethod().Name.ToString());
}

Clean up events

Class clean up

If it's required then implement this code pattern.

Note: below objects isn't available: TestContext, Directory, Log, Session

Copy

/// <summary>
/// Test class (test unit) clean up
/// </summary>
/// <remarks>Some objects isn't available (TestContext, Directory, Log, Session)</remarks>
[ClassCleanup()]
public static void ClassCleanup()
{
    SIC.Test.Helper.Print.WriteSection(System.Reflection.MethodBase.GetCurrentMethod().Name.ToString());
}

Assembly clean up

If it's required then implement this code pattern.

Note: below objects isn't available: TestContext, Directory, Log, Session

Copy

/// <summary>
/// Test assembly (test unit) clean up
/// </summary>
/// <remarks>Some objects isn't available (TestContext, Directory, Log, Session)</remarks>
[AssemblyCleanup()]
public static void AssemblyCleanup()
{
    SIC.Test.Helper.Print.WriteSection(System.Reflection.MethodBase.GetCurrentMethod().Name.ToString());
}

Troubleshooting

See Test Case Exception

Reference

SIC.Test.Helper

Other Resources

Microsoft.VisualStudio.QualityTools.UnitTestFramework (external link to MSDN)

SOWI Test syntax and settings for test units handling
